MED-EL In Sync with Natural Hearing - Dec 2017

Advancements in Bone Conduction Technology with ADHEAR

Patrik Westerkull, MSc Eng, PhD, Kim Twitchell, MS, Reg CASLPO

October 8, 2018
Share:

Interview with ADHEAR inventor, Patrik Westerkull and Kim Twitchell, Clinical Education Manager for Bone Conduction at MED-EL Corporation, USA.



AudiologyOnline: MED-EL recently launched the ADHEAR system.  Why are you calling ADHEAR a revolution in non-surgical bone conduction technology?

Figure

Patrik Westerkull: Conventional bone conductors have been around for more than 50 years. They are based on a retention arrangement worn around the head such as headbands, softbands or spectacles and include a vibrator that is constantly pressing against the head. The drawbacks of discomfort and poor esthetics with these concepts have been and remain obvious. Numerous attempts have been made over decades to try to find an acceptable bone conduction solution. No one was able to solve this challenge, and only solutions requiring implant surgery were able to address these drawbacks. Implant surgery adds complexity to the treatment and is not accepted by all patients, and some cases are not suitable for it. The revolutionary progress with ADHEAR is that it addresses both drawbacks without requiring any surgery, and it is the first practical user-friendly bone conduction concept to do so. It is a breakthrough in the field and a completely new type of concept that will offer an invaluable acceptable treatment option for these patients. Although it is so easy to use, ADHEAR includes fundamental non-obvious technological achievements on two major aspects: the ability to efficiently transfer vibrations through the skin without applying any pressure and a secure, safe and well-functioning adhesive device worn on the same area of the skin year after year.

AudiologyOnline: Now that I know it is an adhesive non-surgical bone conduction system, can you tell me the basics about the system and how the adhesive is used?

Figure

Kim Twitchell: The ADHEAR consists of two parts: the adhesive adapter and the audio processor.  The adhesive adapter, which is inconspicuously placed on the mastoid bone behind the ear, has a plastic snap coupler on it that we are able to couple the audio processor to.  This unique but straight forward system applies no pressure to the skin and provides the user with high wearing comfort.

AudiologyOnline: Can this adhesive adapter be used in the same position every day, and how long does it last?

Kim Twitchell:  The adhesive adapter is designed to be worn in the same optimal position every day, even while bathing, swimming and other water related activities.  This single use adhesive adapter can be worn for 3 to 7 days, offering consistent access to sound.

AudiologyOnline: How does the ADHEAR system by MED-EL compare to other conventional, non-surgical bone conduction systems such as those using a soft-band?

Patrik Westerkull: Conventional bone conductors have been shown to be efficient in compensating for pure conductive losses, but less so for mixed hearing losses. The ADHEAR device, which is an ear level device, has shown very similar performance compared to conventional bone conduction arrangements, as well as passive semi-implantable bone conductors that are magnetically attached. ADHEAR is an efficient device for patients as long as the cochlear function [bone conduction] is still fairly normal, and it is ideal for patients with unilateral or bilateral conductive hearing loss. The big difference with ADHEAR is in the wearing comfort esthetics and patient acceptance of the device, where it is worn without any discomfort and where no bulky retention arrangements are required. Due to the drawbacks of conventional bone conductors, many patients refuse them or really struggle with them, and since conductive hearing losses are quite common among children, the lack of acceptable treatment often meant that children were lagging behind in school and in social development.

AudiologyOnline: What is the candidacy for the ADHEAR?

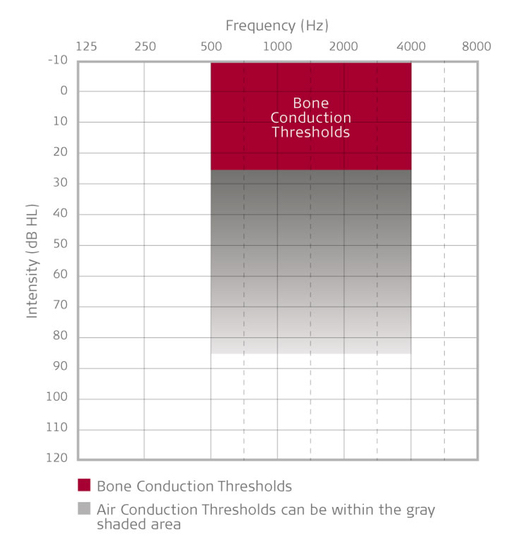

ADHEAR is available to anyone with a unilateral or bilateral conductive hearing loss that is either chronic or temporary in nature with thresholds in the normal range of -10 to 25 dB HL.  In people with single sided deafness, candidates should have normal hearing on the contralateral side.



AudiologyOnline: How can I go about getting more information, support and training if I want to offer this to my patients?

Kim Twitchell: There are five different ways to get more information, support or training for ADHEAR:

  1. www.medel.com/us/adhear,
  2. Contact our In-House Audiology team at 1-888-633-3524
  3. Participate in our CEU training courses here at Audiology Online
  4. Join us at our regional training events. Register at www.stickclickhear.com
  5. Contact your local MED-EL representative for more information about ADHEAR
4 recorded webinars | Millennial Matters & Generational Issues in Audiology | Guest Editor: Yell Inverso, Aud, PhD |


patrik westerkull

Patrik Westerkull, MSc Eng, PhD

Patrik Westerkull, M.Sc.Eng., Ph.D., from Chalmers University of Technology, Gothenburg, Sweden, has been the CEO and founder of Otorix AB since 2004. Patrik is the original inventor and developer of ADHEAR. ADHEAR was acquired by MED-EL from Otorix in 2016 and is a trademark of MED-EL. Patrik is, through Otorix, a senior advisor to MED-EL and involved in further ADHEAR developments. Patrik has been an innovative and entrepreneurial driving force in advanced bone conduction hearing devices and research for over two decades. He has previously been Director of the BAHA (Bone Anchored Hearing Aid) division 1993-2003 in Noble Biocare and Entific Medical systems, acquired by Cochlear Corp. in 2005. Patrik is also the original inventor and developer of the Ponto bone anchored hearing system, acquired by Oticon from Otorix in 2006.


kim twitchell

Kim Twitchell, MS, Reg CASLPO

Clinical Education Manager, Bone Conduction, MED-EL Corporation

Kim is the Clinical Education Manager for Bone Conduction devices for MED-EL North America.  She provides training for the BONEBRIDGE, ADHEAR and SOUNDBRIDGE devices.  Her background includes working with bone conduction devices and cochlear implants for over 20 years.  She has worked with all ages within the deaf and hard of hearing communities.  Her work experience includes working at the Hospital for Sick Children, Toronto, Ontario and London Health Sciences Centre in London, Ontario as well as a private practice where she began her career dispensing hearing aids including bone conduction devices.  She has enjoyed her career in hearing healthcare and its emphasis on helping children and adults learn to function with amplification.
